Have you ever wondered how workplaces keep employees safe around heavy machinery? That’s where lockout tagout equipment comes in. This safety system isolates hazardous energy, ensuring machines stay off during maintenance or repairs. By using locks to physically prevent operation and tags to warn others, you can avoid accidents caused by unexpected startups. OSHA emphasizes that these devices must be durable, standardized, and easy to identify. They’re not just tools—they’re lifesavers, protecting workers and keeping equipment secure.
Key Takeaways
Lockout tagout tools stop machines from starting during repairs.
Locks and tags work together to keep equipment safe and warn others.
Following OSHA rules is important to avoid fines and accidents.
Training and clear instructions make workplaces safer and more responsible.
Good lockout tools protect workers and help machines last longer.
What Is Lockout Tagout Equipment?
Definition and Purpose
Lockout tagout equipment is a critical safety system designed to protect you and your coworkers from hazardous energy. Its primary purpose is to prevent machines or equipment from unexpectedly starting up or releasing stored energy during maintenance or servicing. By isolating energy sources and using locks, tags, or a combination of both, this equipment ensures that machinery stays off until it’s safe to operate again.
Here’s why it’s essential:
It controls the release of stored energy that could harm employees.
It disables equipment from its power source during servicing to avoid injuries.
In short, lockout tagout equipment keeps you safe while working on potentially dangerous machinery.
Types of Lockout Tagout Equipment
Lockout Devices
Lockout devices physically block energy sources to prevent accidental activation. These include padlocks, valve locks, and circuit breaker locks. For example, a valve lockout can isolate hazardous energy in piping systems, while a circuit breaker lockout ensures electrical circuits remain de-energized during repairs.
Tagout Devices
Tagout devices are warning tags placed on energy isolation points. These tags alert others that the equipment is under maintenance and must not be operated. While they don’t physically block energy sources, they serve as a visible reminder to stay cautious.
Combination Devices

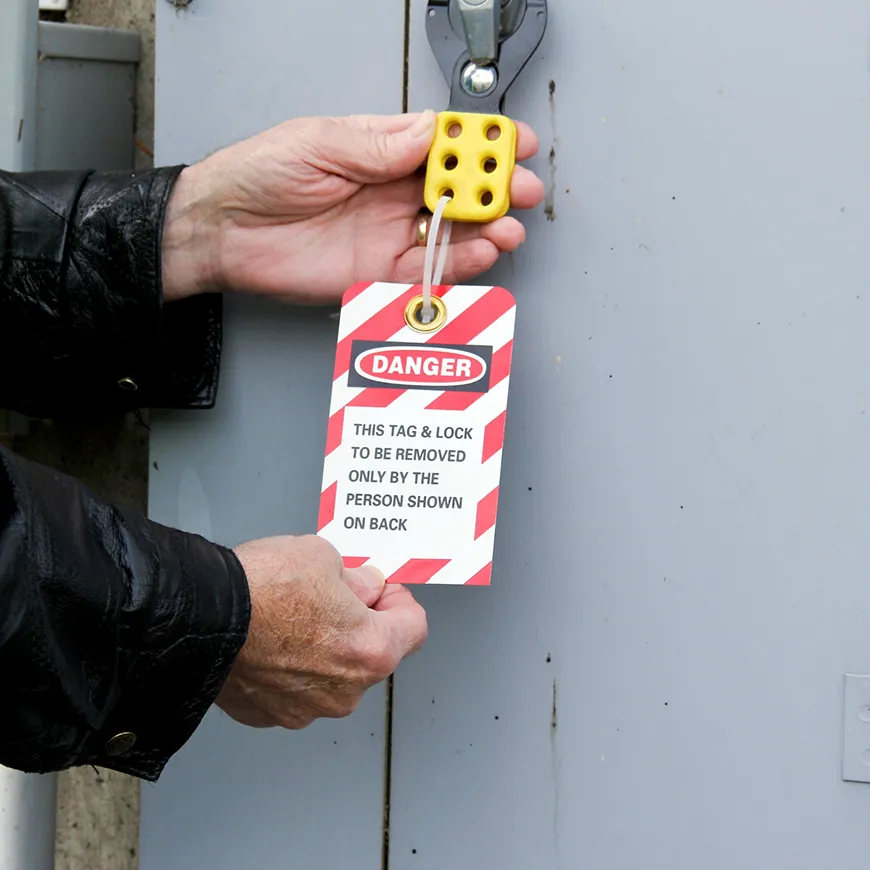

Combination devices use both locks and tags for maximum safety. They physically secure the equipment while also providing a clear warning. This dual approach ensures that no one accidentally tampers with the machinery.
Applications of Lockout Tagout Equipment
Machinery Maintenance
When you’re working on heavy machinery, lockout tagout equipment ensures that no one can accidentally start it. This prevents injuries and keeps maintenance tasks safe and efficient.
Electrical Systems
Electrical systems often store dangerous energy. Using lockout devices like circuit breaker locks or plug lockouts can help you isolate these systems, ensuring they remain de-energized during servicing.
Hydraulic and Pneumatic Systems
Hydraulic and pneumatic systems can release stored energy suddenly, causing serious harm. Lockout devices like valve locks or cable lockouts can block these energy sources, keeping you safe while you work.
Why Is Lockout Tagout Important for Workplace Safety?
Preventing Workplace Accidents
Statistics on Injuries from Hazardous Energy
Workplace injuries caused by hazardous energy are more common than you might think. In 2023, Massachusetts alone reported 55,400 nonfatal workplace injuries and illnesses, with an incidence rate of 2.2 cases per 100 full-time workers. Over the past decade, fatal workplace injuries in the state have increased by a staggering 107%. These numbers highlight the critical need for safety measures like lockout tagout to protect workers from unexpected equipment startups or energy releases.
Real-Life Examples of LOTO Effectiveness
Imagine working on a machine that suddenly powers up. Without proper lockout tagout procedures, this could lead to severe injuries like broken bones or even amputations. However, companies that follow these procedures have seen significant reductions in such incidents. By securely isolating hazardous energy sources, you can ensure a safer work environment and prevent life-altering accidents.
Ensuring Compliance with OSHA Standards
OSHA Requirements
To keep workplaces safe, OSHA has established clear guidelines for controlling hazardous energy. Here’s a quick look at the key standards:
OSHA Standard | Description |
|---|---|
Title 29 CFR Part 1910.147 | Covers the Control of Hazardous Energy and outlines lockout/tagout procedures. |
Title 29 CFR Part 1910.333 | Addresses electrical safety-related work practices, including lockout/tagout requirements. |
Following these standards ensures that you meet OSHA guidelines and maintain a safe workplace.
Consequences of Non-Compliance
Ignoring OSHA guidelines can lead to serious consequences. Businesses may face hefty fines ranging from $14,502 to $156,259, depending on the violation. Legal liabilities and lawsuits can also arise, costing companies even more. Regulatory inspections after accidents can further damage a company’s reputation. Compliance isn’t just about avoiding penalties—it’s about protecting lives.
Protecting Workers and Equipment
Reducing Injury Risks
Lockout tagout procedures are designed to keep you safe. By isolating hazardous energy sources and applying locks and tags, you can prevent unexpected equipment activation. This reduces the risk of severe injuries, including fatalities, and ensures that everyone goes home safely at the end of the day.
Preventing Equipment Damage
It’s not just about worker safety—lockout tagout also protects your equipment. Hazardous energy releases can cause significant damage to machinery, leading to costly repairs or replacements. By following proper procedures, you can extend the lifespan of your equipment and avoid unnecessary expenses.
How Does Lockout Tagout Work?
Identifying Hazardous Energy Sources
Before you can safely work on equipment, you need to identify all hazardous energy sources. This step ensures no surprises during maintenance. Here’s how you can do it:
Survey the work area to locate all potential energy sources, such as electrical, mechanical, or hydraulic systems.
Release or block any stored energy before applying lockout devices.
Use personal safety locks and tags to secure the equipment. Only the person exposed to the hazard should place or remove these.
If maintenance spans multiple shifts, replace the outgoing shift’s locks and tags with those of the incoming shift. Make sure the new team understands the hazards.
Attempt to operate the equipment to confirm all energy sources are locked out.
Remove locks only after verifying the equipment is safe to use.
Tip: Always double-check for hidden energy sources. Overlooking one could lead to dangerous situations.
Electrical Energy
Electrical energy is one of the most common hazards. You should isolate it by shutting off power at the main switch and locking it out. Circuit breaker locks are especially useful here.
Mechanical Energy
Mechanical systems can store energy in moving parts. Block or release this energy before starting maintenance. For example, use a lockout device to prevent a machine’s gears from moving unexpectedly.
Hydraulic and Pneumatic Energy
Hydraulic and pneumatic systems store energy in pressurized fluids or air. Use valve locks or similar devices to block these systems and ensure they’re safe to work on.
Isolating and Controlling Energy
Once you’ve identified the energy sources, it’s time to isolate and control them. This step ensures the equipment stays off during servicing.
Shutting Down Equipment
Turn off the equipment completely. Follow the manufacturer’s shutdown procedures to avoid damaging the machinery.
Applying Lockout Devices

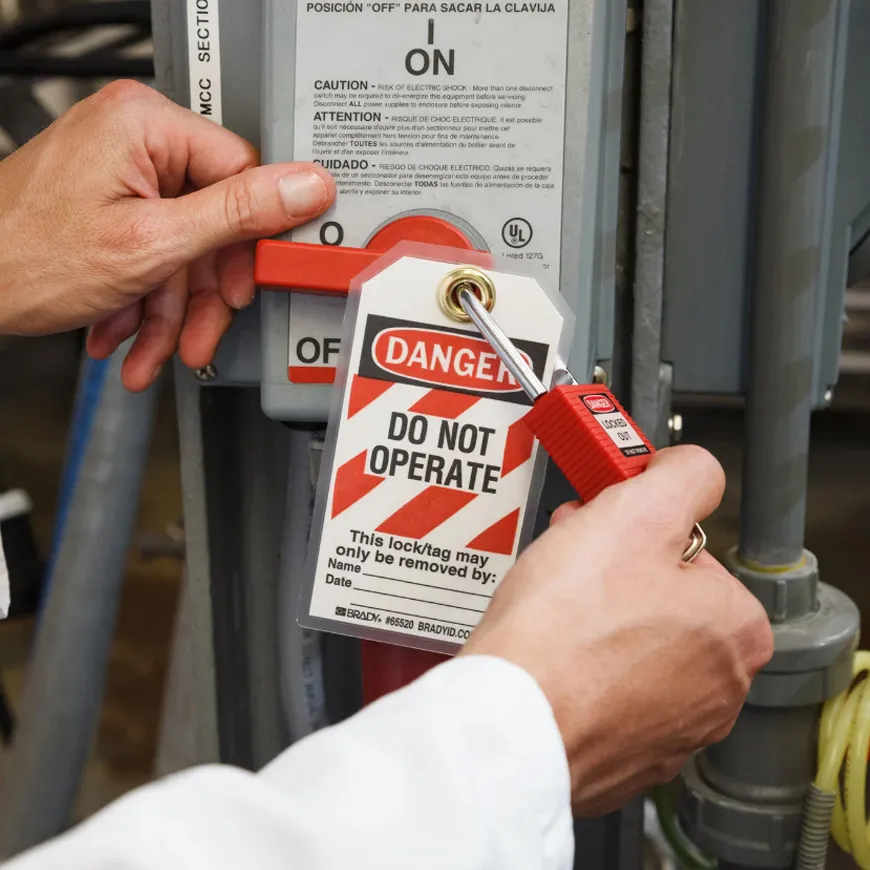

After shutting down, apply the appropriate lockout devices. These could include padlocks, valve locks, or circuit breaker locks. Make sure each device is secure and cannot be removed without a key or tool.
Note: Always use devices that meet OSHA standards for durability and visibility.
Verifying Energy Isolation
Even after isolating energy, you need to confirm the equipment is safe. Verification is a critical step in the lockout process.
Testing for Residual Energy
Test the equipment to ensure no residual energy remains. For example, try operating the machine to confirm it won’t start. Open vents or drains to release any trapped energy in hydraulic or pneumatic systems.
Documenting the Process
Keep a record of the lockout procedure. Documenting ensures accountability and helps you track the steps taken to secure the equipment.
Reminder: Proper documentation can also protect you during inspections or audits.
By following these steps, you can ensure a safe and effective lockout process, protecting both workers and equipment.
Steps to Implement a Lockout Tagout Procedure
Prepare for Shutdown
Before you begin, preparation is key. You need to identify all energy sources connected to the equipment. This includes electricity, hydraulics, and even stored energy like compressed air. A thorough walk-through of the work area helps you spot these energy control points. Once identified, review the equipment manuals to understand the specific shutdown procedures for each machine.
Here’s a quick checklist to guide your preparation:
Conduct team meetings to discuss the task.
Post notices in visible areas to inform everyone.
Send email alerts to ensure no one misses the update.
Tip: Always have a clear shutdown plan for each energy source. This minimizes risks and ensures a smooth process.
Notify Affected Employees
Communication is crucial. You must inform all employees about the upcoming lockout. Let them know which equipment will be affected, the expected duration, and any alternative processes they might need to follow. For example, if a critical machine is down, workers should know how to proceed without it.
Training also plays a big role here. Make sure everyone understands the lockout/tagout procedures. Maintenance workers and equipment operators should receive specific training tailored to their roles. Keep records of these sessions, including the date, trainer’s name, and attendees’ signatures.
Reminder: Provide contact information for the person responsible for the lockout. This ensures employees know who to reach out to if they have questions.
Shut Down Equipment
Once everyone is informed, it’s time to shut down the equipment. Follow the manufacturer’s shutdown procedures carefully. This step ensures the machinery powers down safely without causing damage.
Here’s how you can do it step by step:
Turn off the equipment using its standard controls.
Disconnect all energy sources to ensure the machine is de-energized.
Release any stored energy, such as compressed air or hydraulic pressure.
Note: Always verify that the equipment is completely off before moving to the next step. This prevents accidents and ensures a safe working environment.
By following these steps, you can create a safer workplace and ensure that lockout/tagout procedures are effective.
Isolate Energy Sources
When isolating energy sources, you need to be thorough. Missing even one source can lead to dangerous situations. Start by identifying all potential energy types connected to the equipment. These could include electrical, hydraulic, pneumatic, thermal, or even gravity-based energy. Don’t overlook less obvious sources like stored energy in springs or pressurized systems.
Here’s how you can isolate energy sources effectively:
Use proper energy-isolating devices, such as circuit breakers or main electrical disconnects, to cut off power.
Block hydraulic or pneumatic energy by closing valves and applying valve locks.
Secure moving parts that could shift due to gravity using physical restraints.
Release any stored energy, like compressed air or steam, before starting work.
Tip: Always double-check your work. A quick review can save lives.
Once you’ve isolated the energy, ensure safeguards are in place to protect everyone involved. This might include barriers or warning signs to keep unauthorized personnel away. Before moving on, verify that the isolation is complete using the Lock-Tag-Try method. This involves locking out the energy source, tagging it with a warning label, and trying to operate the equipment to confirm it’s fully de-energized.
By isolating energy sources carefully, you create a safe environment for maintenance or servicing. It’s a crucial step that ensures no surprises while you work.
Perform Maintenance or Servicing
Now that the equipment is safely locked out, you can begin maintenance or servicing. This is the stage where you focus on completing the task at hand while ensuring safety remains a top priority. Always follow the manufacturer’s guidelines and your company’s written procedures for the specific equipment you’re working on.
Here are a few common mistakes to avoid during this step:
Skipping lockout for quick jobs. Even if it’s a five-minute task, always lock out the equipment.
Leaving keys in the lock. This defeats the purpose of securing the machinery.
Forgetting to verify the main disconnect. Don’t rely solely on locking out the control circuit.
Ignoring written procedures. Always stick to the documented lockout/tagout steps.
Tip: If multiple employees are working on the same equipment, use group lockout devices. This ensures everyone’s safety and prevents accidental startups.
Once the maintenance is complete, double-check your work. Make sure all tools, spare parts, and damaged components are removed from the area. Return everything to its proper place to avoid clutter or hazards. Finally, inspect the equipment to confirm it’s ready for operation before moving to the next step.
Remove Devices and Restore Power
After servicing, it’s time to bring the equipment back online. But don’t rush—this step requires careful attention to detail. Start by clearing the area of unnecessary items. Ensure all tools are accounted for and no one is near the equipment.
Follow these steps to safely remove lockout/tagout devices and restore power:
Notify all affected employees that the lockout devices will be removed.
Confirm that all guards and safety devices are reinstalled and functioning properly.
Remove the lockout and tagout devices in the reverse order of application.
Test the equipment to ensure it’s operating correctly.
Reminder: Never remove a lock or tag unless you’re authorized to do so. This ensures accountability and prevents accidents.
By following these steps, you can safely restore power and get back to work without compromising safety.
Tools and Equipment for Lockout Tagout
When it comes to lockout tagout, having the right tools makes all the difference. These tools ensure you can safely isolate hazardous energy and prevent accidents. Let’s dive into the essential equipment you’ll need.
Lockout Devices
Padlocks
Padlocks are the backbone of lockout procedures. You use them to secure plugs or parts of electrical systems, ensuring they stay off during maintenance. Each padlock should have a label like “LOCKED OUT” or “DANGER” to make its purpose clear.
Circuit Breaker Locks
Circuit breaker locks are perfect for securing power sources. They’re easy to install with a thumbwheel design and work with various breaker types. These locks prevent accidental re-energizing, keeping you and your team safe.
Valve Locks
Valve locks physically block valve operation, stopping the flow of hazardous materials. Whether you’re dealing with ball, butterfly, or gate valves, these locks ensure the system stays secure during servicing.
Tip: Adjustable cable lockouts are great for hard-to-reach areas or irregularly shaped energy sources.
Tagout Devices
Warning Tags
Warning tags are your visual alerts. They let everyone know that equipment is under maintenance and must not be operated.
Labels and Signs
Labels and signs provide additional clarity. They’re durable, easy to read, and help reinforce safety protocols.
Feature | Description |
|---|---|
Durable | Withstands harsh conditions like moisture and chemicals. |
Substantial | Prevents accidental removal with strong attachment methods. |
Identifiable | Displays clear warnings and identifies the worker responsible. |
Additional Tools
Lockout Hasps
Lockout hasps allow multiple workers to secure a single energy source. Each worker attaches their padlock, ensuring no one removes the lock until everyone is done.
Group Lockout Boxes
Group lockout boxes are a lifesaver in multi-worker environments. They centralize lockout devices, enhance safety, and promote accountability. Each worker uses their lock, ensuring the equipment stays de-energized until all locks are removed.
Safety Kits
Safety kits bundle everything you need for lockout tagout. They often include padlocks, tags, hasps, and more, making them a convenient option for any workplace.
Reminder: Always store your tools in a lockout tagout station to keep them organized and accessible.
Lockout tagout equipment plays a vital role in ensuring workplace safety. By preventing accidental machine startups and controlling hazardous energy, it protects workers from serious injuries and even fatalities. A well-documented lockout/tagout policy and proper training form the backbone of an effective safety program. This approach not only reduces risks but also fosters a culture where safety is a shared priority.
To implement these procedures effectively, you need to focus on training and inspections. Regular hands-on training sessions help employees understand the correct sequence of steps, while inspections ensure your equipment and processes remain reliable. These strategies build confidence and keep your workplace safe.
Investing in high-quality tools and equipment is equally important. Reliable lockout devices minimize downtime, reduce accidents, and demonstrate your commitment to safety. This investment boosts employee morale and ensures maintenance tasks run smoothly. When you prioritize safety, you create a positive work environment where everyone feels protected and valued.
Remember: Safety isn’t just a policy—it’s a mindset. Equip your team with the right tools, knowledge, and procedures to make safety a daily practice.
FAQ
What is the purpose of LOTO procedures?
LOTO procedures ensure your safety by isolating hazardous energy during equipment maintenance. They prevent accidental startups and energy releases, keeping you and your coworkers safe from injuries. These procedures are essential for maintaining a secure work environment.
How do LOTO procedures protect employees?
LOTO procedures provide employee protection by locking out energy sources and tagging them with warnings. This ensures no one accidentally operates the equipment while it’s being serviced. It’s a simple yet effective way to avoid workplace accidents.
Can LOTO procedures be skipped for quick jobs?
No, you should never skip LOTO procedures, even for short tasks. Hazardous energy can cause serious injuries in seconds. Following these safety steps ensures your protection and keeps everyone safe.
What tools are essential for LOTO safety?
For LOTO safety, you’ll need padlocks, valve locks, circuit breaker locks, warning tags, and lockout hasps. These tools help you secure energy sources and prevent accidental equipment activation during maintenance.
Why is verifying energy isolation important?
Verifying energy isolation ensures the equipment is completely de-energized before you start working. This step confirms that all energy sources are locked out, providing an extra layer of protection for you and your team.
